Go Power! Solar Extreme Charging System



Go Power! Electric

The Solar Extreme is Go Power!’s largest solar and inverter system.  This system will produce enough power to run up to 3000 watts of appliances or electronics at a time and depending on your exposure to the sun, charge your battery with 27+ amps of charging current. The Solar Elite also includes a 3000-watt Inverter Charger, an all-in-one unit that combines 3000 watts of pure sine wave AC power with a built-in battery charger and transfer switch.

This package provides you charging flexibility between the sun and shore power, as well as the ability to connect power to your 120-volt outlets. A SOLAR EXTREME system will provide you with all of the comforts of home and allow you to be truly ‘off the grid’.

*Best paired with 400Ah+ of AGM Battery Power, or 250Ah+ of Lithium Battery Power.

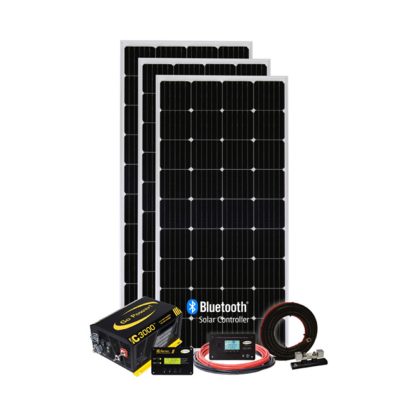

Included in the Solar Extreme System:

  • 190-watt solar charging kit + 2 x 190-watt expansion kits (OVERLANDER + 2x OVERLANDER-E)
  • 30-amp dual-bank, Bluetooth® PWM Solar Controller (GP-PWM-30-UL)*
  • 3000-watt industrial pure sine wave inverter charger for AC power (GP-IC3000-12)
  • IC Series Inverter Charger Remote and 50′ of cable (GP-ICR-50)
  • DC inverter install kit (GP-DC-KIT5)
  • 1 x 25′ of solar output cable (#10) red & 1 x 25’ of solar output cable (#10) black  and all mounting hardware (1 x GP-MH-4-KB)

Note: This product must ship by freight carrier. Manual ship charges will apply.

Solar Specifications
Maximum Power (Pmax) 570 W
Current at Maximum Power (Imp) 27.9 A
Voltage at Maximum Power (Vmp) 20.4 V
Open Circuit Voltage (Voc) 24.09 V
Solar Cell Type Monocrystalline
Solar Module Efficiency 21 %
Connectivity MC4 Connectors
Solar Controller 30 A PWM, multi battery option, 4 stage charging, digital display and flush mount
Frame Type Clear Anodized Aluminum
Battery Based Inverter Specifications
Model Name GP-ISW3000-12
Continuous Output Power 3000 W (VA)
Maximum Surge Rating 6000 W (VA)
Output Wave Form Sine Wave
AC Output Voltage 100 - 120 VAC RMS
AC Output Connections Hardwire
DC Input Voltage 10.5 - 16.5 VDC
Internal Transfer Relay N/A
Transfer Relay Capability N/A
Battery Charger Rate N/A
Battery Charger Efficiency N/A
AC Input Voltage N/A
Temperature Compensation N/A
Remote (Optional) On/off switch, LED monitoring and flush mount
Warranty 2 Years
