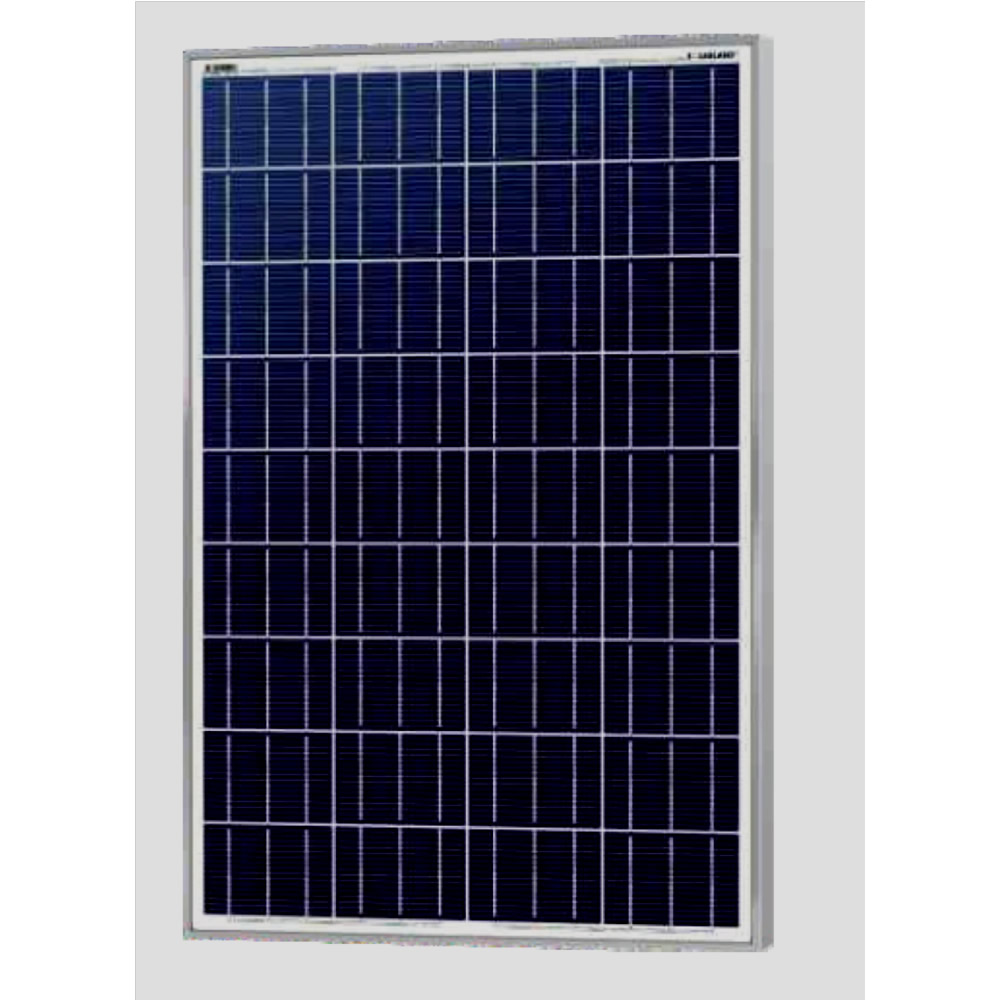

XTerra Solar 90W Multicrystalline Solar Panel

ID: XT-CD090P

$290.00

X-Terra Solar

XTerra  Solar Modules are C1D2 (Class 1, Division 2) certified framed modules for use in industrial and commercial applications.

Downloads

Description

XTerra  90 Watt Solar Modules are cUL certified framed modules for use in industrial and commercial applications.

Features:

  • Nominal 12V DC for standard output
  • Outastanding low-light performance
  • Heavy-duty anodized frame
  • High transparent, low-iron tempered glass
  • Rugged design to withstand high wind pressure, hail and snow load
  • Aesthetic appearance
Solar Specifications
Maximum Power (Pmax) 90 W
Current at Maximum Power (Imp) 5.03 A
Voltage at Maximum Power (Vmp) 17.9 V
Short Circuit Current (Isc) 5.43 A
Open Circuit Voltage (Voc) 22.1 V
Solar Cell Type Multicrystalline
Connectivity Junction Box
Frame Type Anodized Aluminum
Dimensions
Length 940 mm (37.01 inch)
Width 675 (26.57 inch)
Depth 35 mm (1.38 inch)
Weight - 7.9 kg (17.42 lbs)
